회사소개서CREATIVE INNOVATION. LDS.PRODUCT
LED PRODUCT LED
제품 스펙
| PRODUCT | 960 x 540 |
|---|---|
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Configuration (LxH, per cabinet) | 384x216 pixels |
| Diode Type | Surface Mount Device (SMD) |

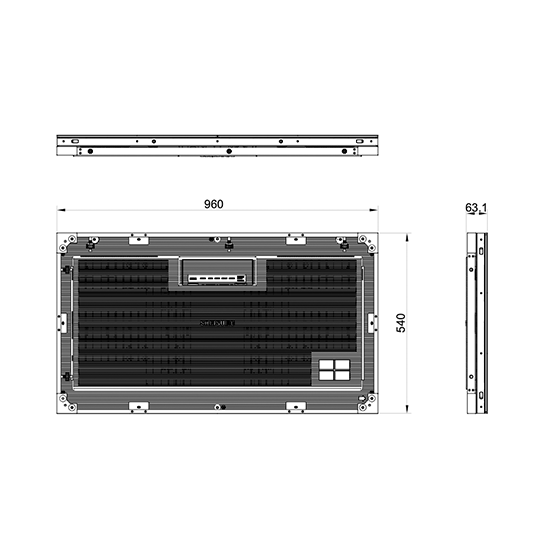

| Dimensions (mm, LxHxD, per cabinet) | 960x540x63.1mm |
| Dimensions (inch, inchxD, per cabinet) | 43.3 inch x 3.13 inch |
| Weight (per cabinet) | 10.7kg |
| Brightness (Peak/Max) | 1,200 nit / 600 nit |
| Contrast Ratio (Peak/Max) | 8,000:1 / 4,000:1 |
| Viewing Angle - Horizontal | 160° (TBD) |
| Viewing Angle - Vertical | 160° (TBD) |
| Bit Depth | 16bot per Color |
| Color Temperature - Default | 6,500K |
| Color Temperature - Adjustable | 2,800~10,000K (use S/BOX) |
| Video Rate | 50/60 Hz |
| Input Power Range | 100~240 VAC, 50/60 Hz |
| Power Consumption - Max | 289 (W/m²) / 150 (W/Cabinet) (TBD) |
| Power Consumption - Typ | 232 (W/m²) / 120 (W/Cabinet) (TBD) |
| Heat Generation - Max (BTU/SF) | 511.5 (TBD) |
| Refresh Rate | 3,840 Hz |
| Working Temperature/Humidity | 0°C~40°C / 10~80%RH |
| Working Temperature/Humidity | -20°C~45°C / 5~95%RH |
| IP Rating | IP20 |
| LED Lifetime | 50,000 hours |
| EMC Class A, Safety 60950-1 | EMC Class A, Safety 60950-1 |
| Service | Front |
| Box Dimension (mm, LxHxD) | 1119X699X206 |
| Box Volume (m²) | 0.161 |
| Package Weight (kg, per cabinet) | 14.8kg |
해당 제품이 사용된 쇼케이스
